TECHNOLOGY CO. LTD.
Model DK-04F

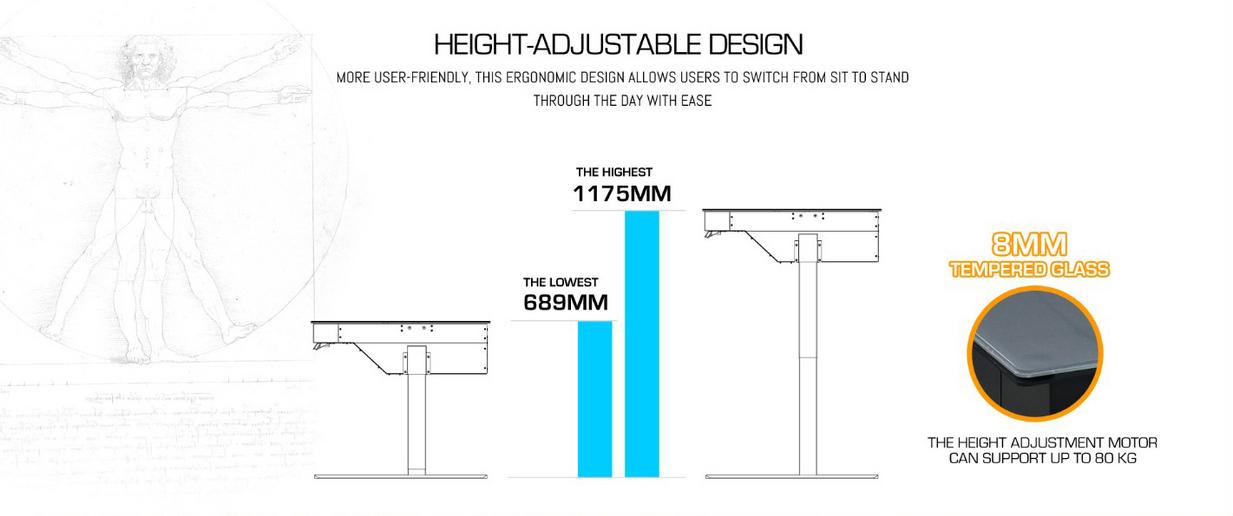

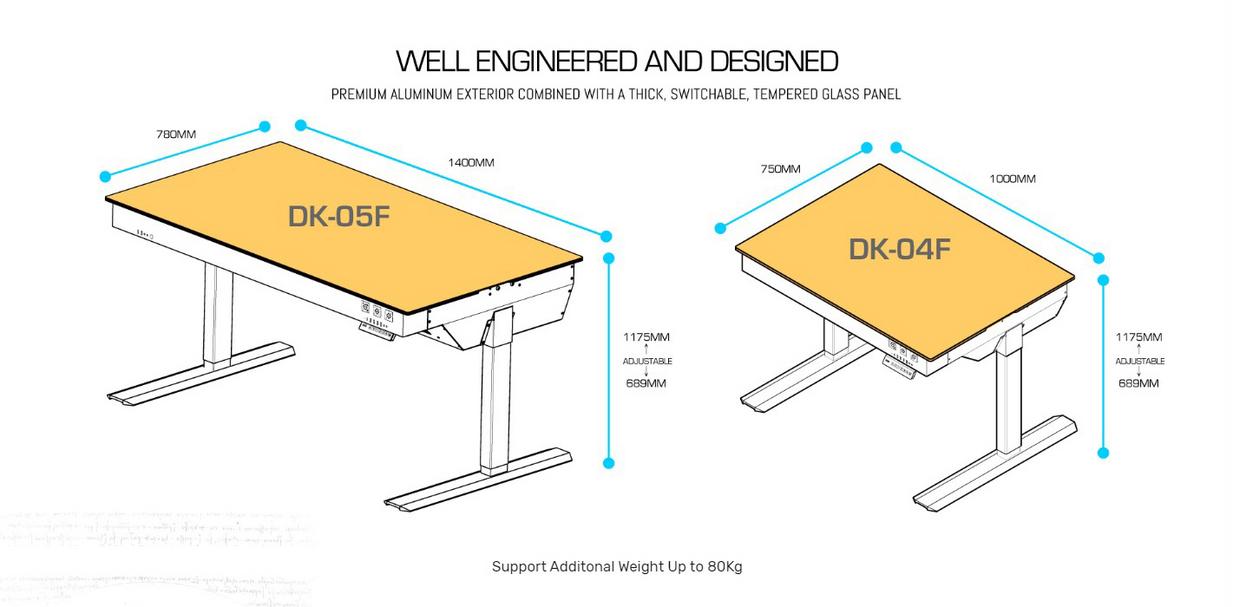

Dimensions (D) 1000mm x (H) 689mm~1175mm (Adjustable) x
(W) 740mm
Switchable Glass:
(D) 1000mm x (W) 740mm x (T) 8mm
Color Black
Material Tabletop: Switchable Glass
Exterior: Aluminum
Interior and legs: Iron
Motherboard MINI-ITX / M-ATX / ATX / E-ATX
Compatibility
Removable 1
MB Tray
Expansion Slots 8
VGA Length 390mm (Maximum)
PSU ATX
PSU Clearance 240mm (Maximum)
CPU Cooler 185mm (Maximum)
Height

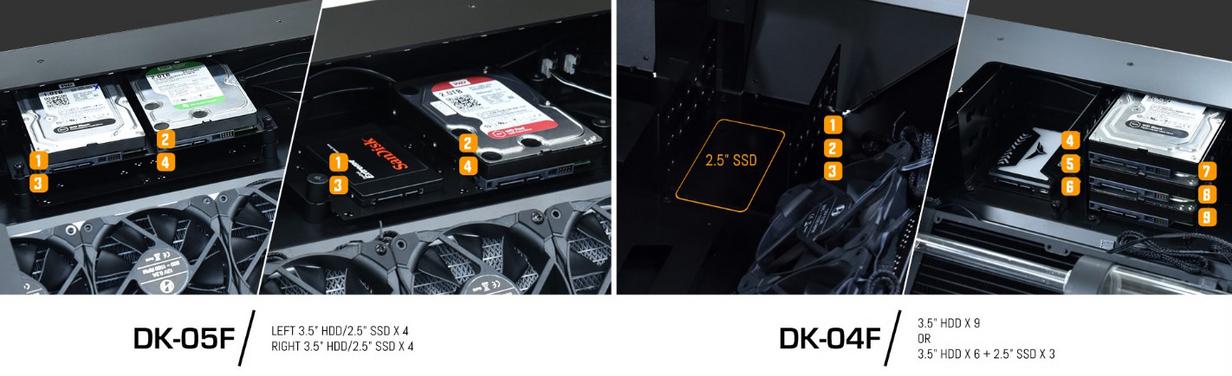

Hard Drive 3.5″ HDD x 9 or 3.5″ HDD x 6 + 2.5”SSD x 3
Removable 3
Drive Tray

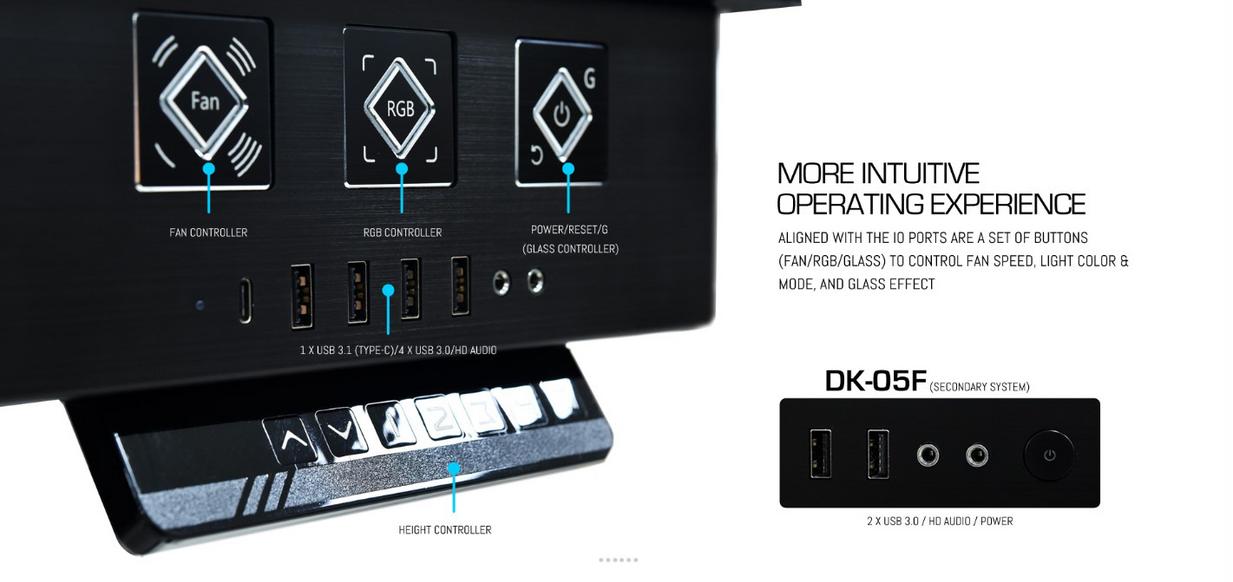

I/O Ports Fan control buttons x 5
RGB control buttons x 5
Power / Reset / G (Glass effects control)
USB 3.1 (TYPE-C) x 1 / USB 3.0 x 4 / HD Audio
Desk Height Control: ▲ ▼ ① ② ③ ④ Ⓜ

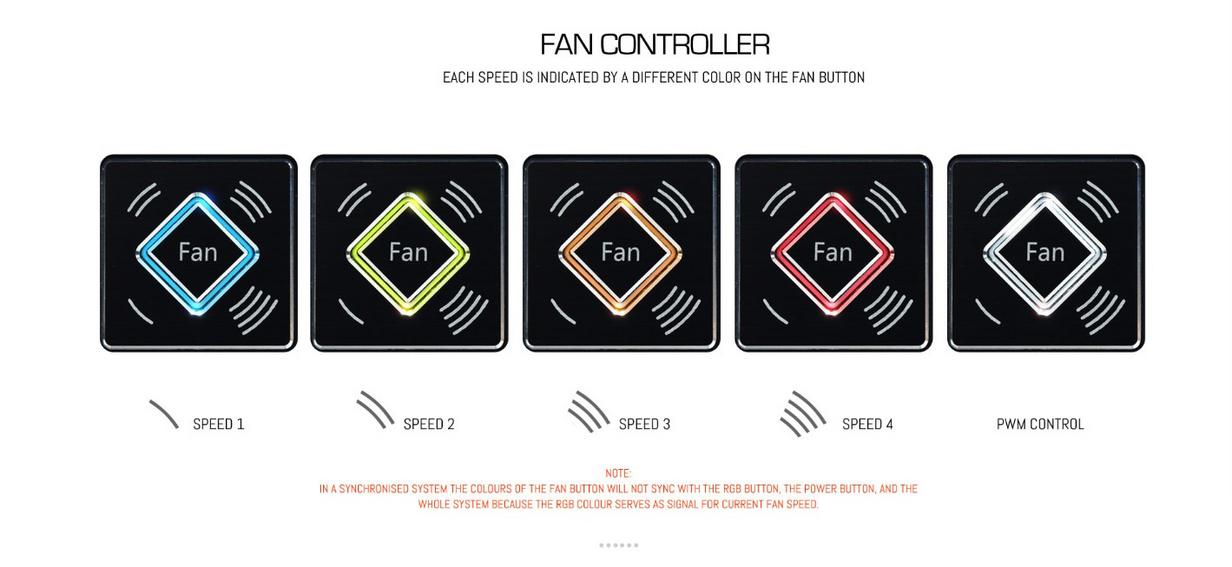

Fan Controller FAN: Press FAN to sync with the motherboard
I/II/III/IIII: Fan speed control
RGB Controller RGB: 1. Press for 3 secs to switch on / off the RGB
2. Press RGB to sync with the motherboard
┌ ┐: Light mode control (7 modes)
└ ┘: Light color control
Power Glass POWER

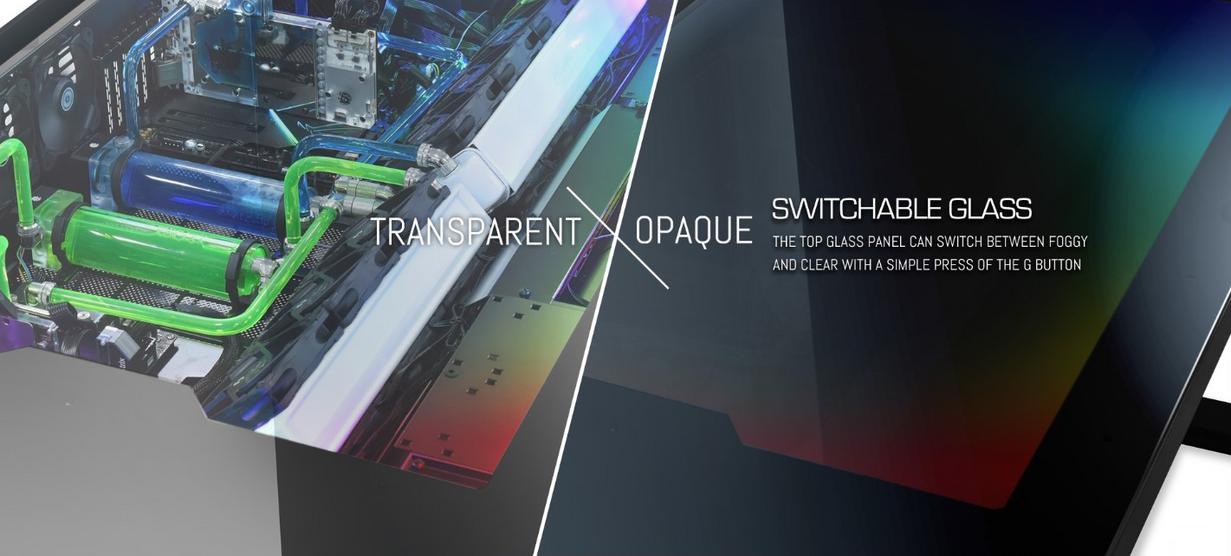

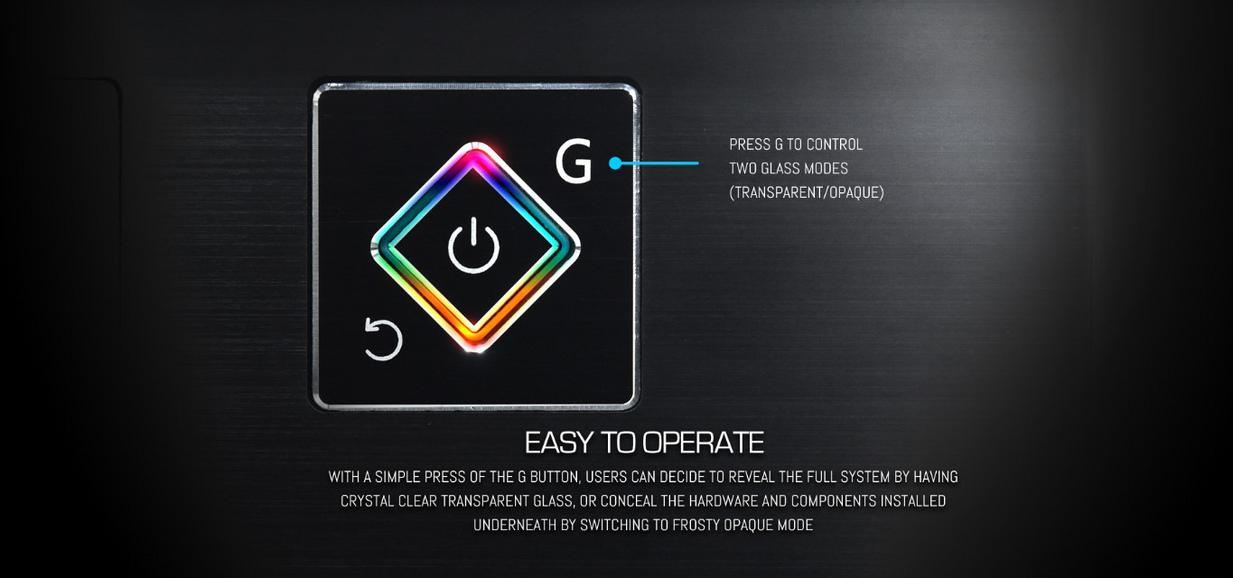

Controller Reset G: Glass Control (On: Transparent; Off: Opaque)
Reset
Desk Height ▲: Ascend
Control Buttons ▼: Descend
① ② ③ ④ Ⓜ : 4 free settings allow users to customize
and set their preferred sitting/standing
heights; press ⓜ to memorize the setting.
Radiator Support Front: 480mm / 420mm x 1
Rear Left: 280mm / 240mm x 1
Fan support Front: 140mm x 3 or 120mm x 4
Rear Left: 140mm / 120mm x 2
Rear Right: 140mm / 120mm x 1

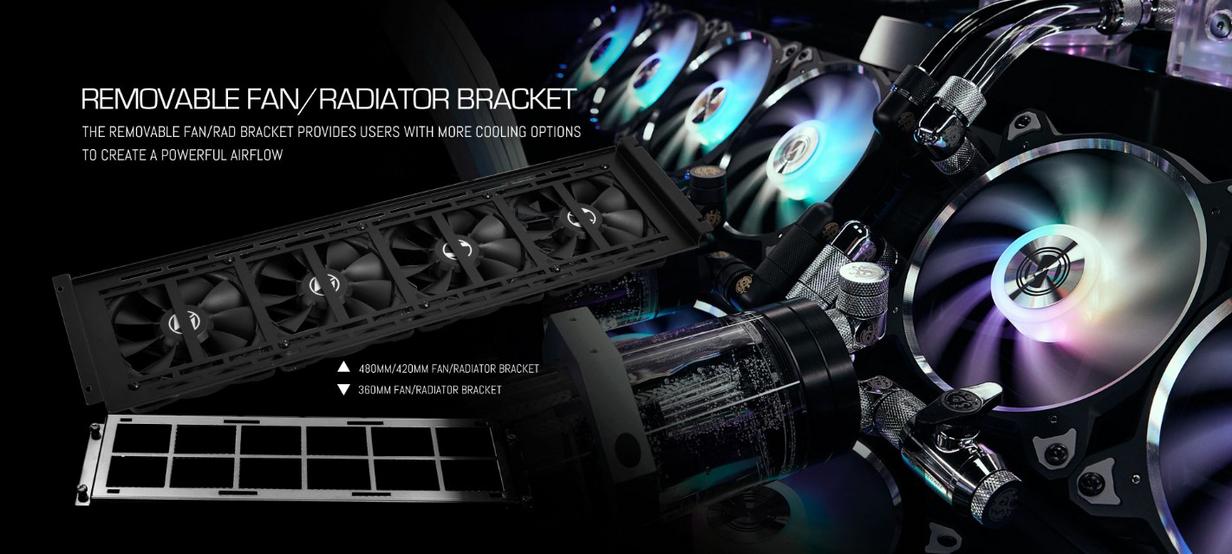

Removable 1 x 480mm /420mm
Fan / Rad Bracket
Pump bracket Pre-installed in the middle left
LEDs Strip 3 (LEDs: 66)
Model DK-05F

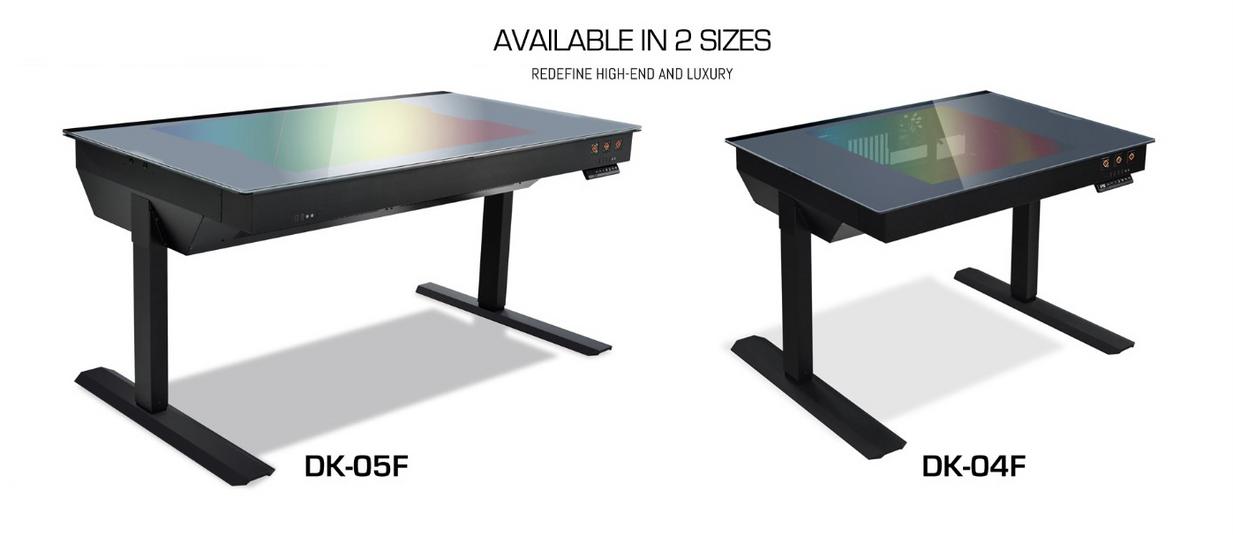

Dimensions (D) 1400mm x (H) 689~1175mm (Adjustable) x (W) 780mm
Switchable Glass:
(D) 1400mm x (W) 780mm x (T) 8mm
Color Black
Material Tabletop: Switchable Glass
Exterior: Aluminum
Interior and legs: Iron

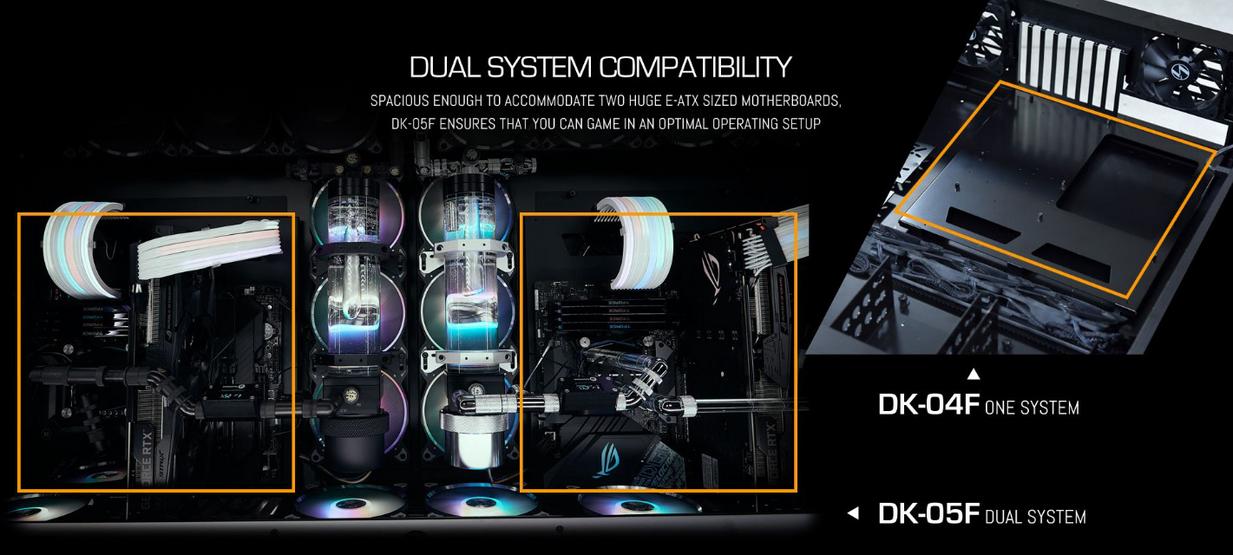

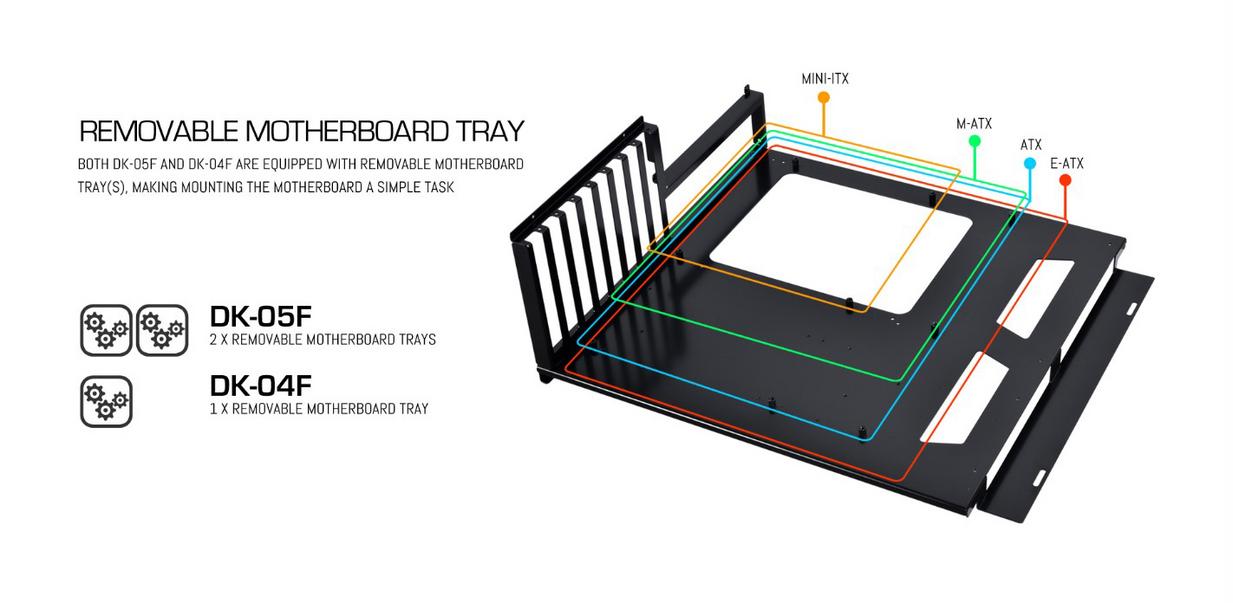

Motherboard MINI-ITX / M-ATX / ATX / E-ATX x 2
Compatibility
Removable 2
MB Tray
Expansion Slots 8 x 2

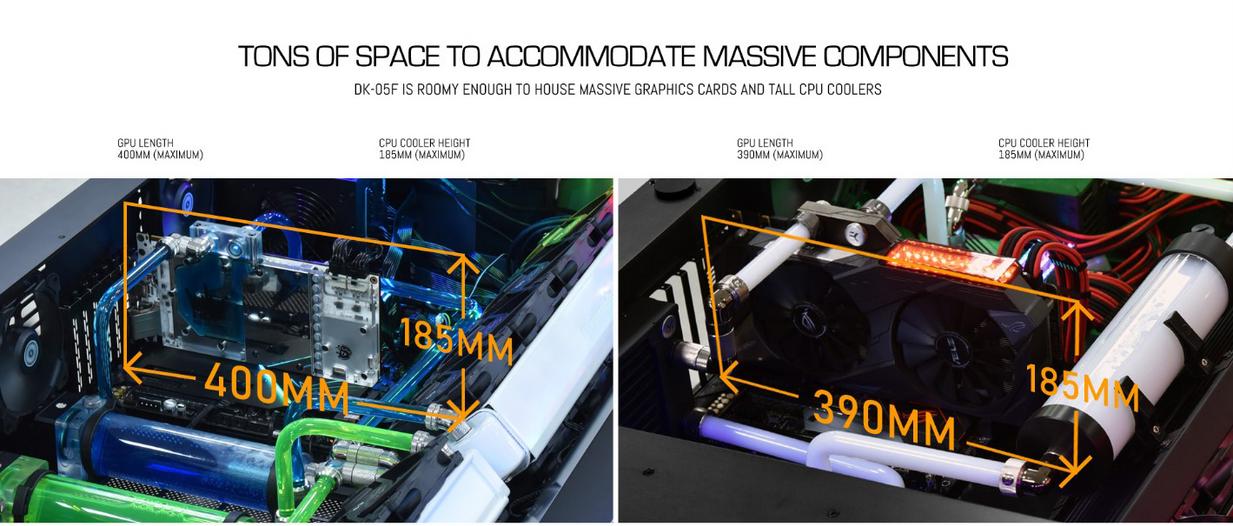

VGA Length 400mm (Maximum)
PSU ATX
PSU Clearance 230mm (Maximum)
CPU Cooler 185mm (Maximum)
Height

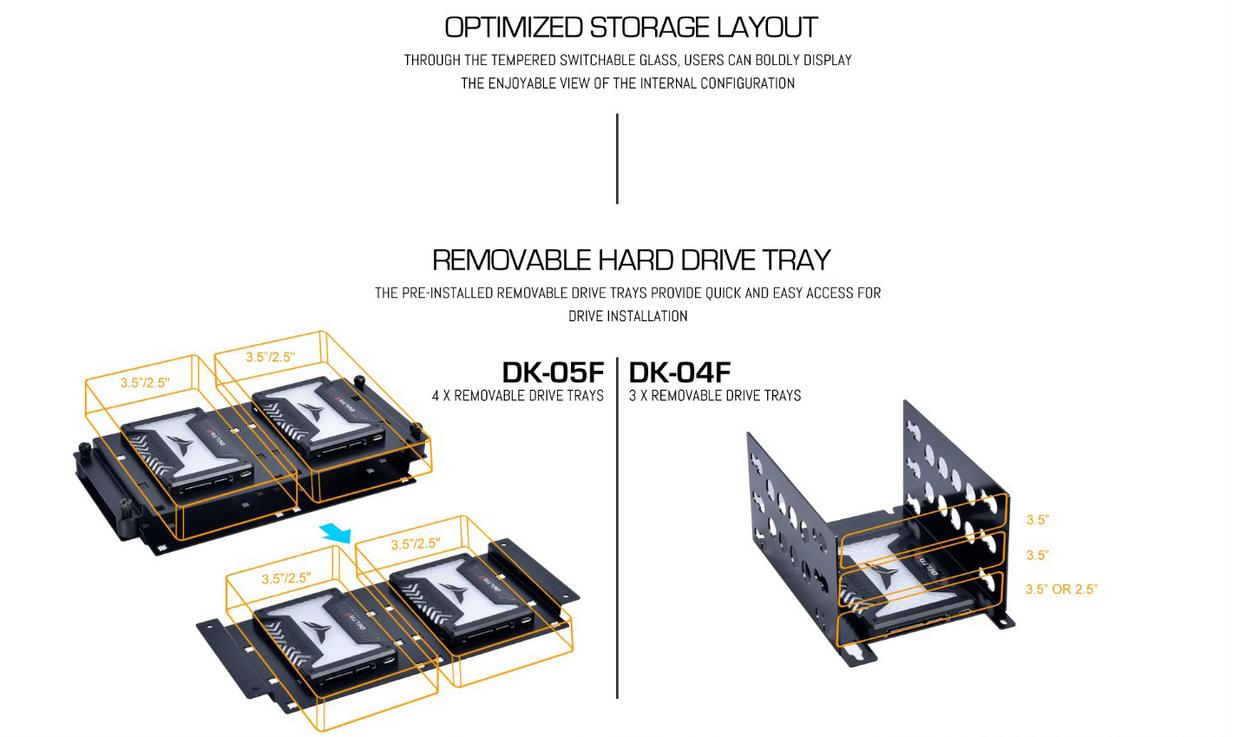

Hard Drive (3.5″ HDD / 2.5″ SSD x 4) x 2
Removable 4
Drive Tray
I/O Ports Right: Fan control buttons x 5
RGB control buttons x 5
Power / Reset / G (Glass effects control)
USB 3.1 (TYPE-C) x 1 / USB 3.0 x 4 / HD Audio
Desk Height Control: ▲ ▼ ① ② ③ ④ Ⓜ
Left: USB 3.0 x 2 / HD Audio / Power
Fan Controller FAN: Press FAN to sync with the motherboard
I/II/III/IIII: Fan speed control

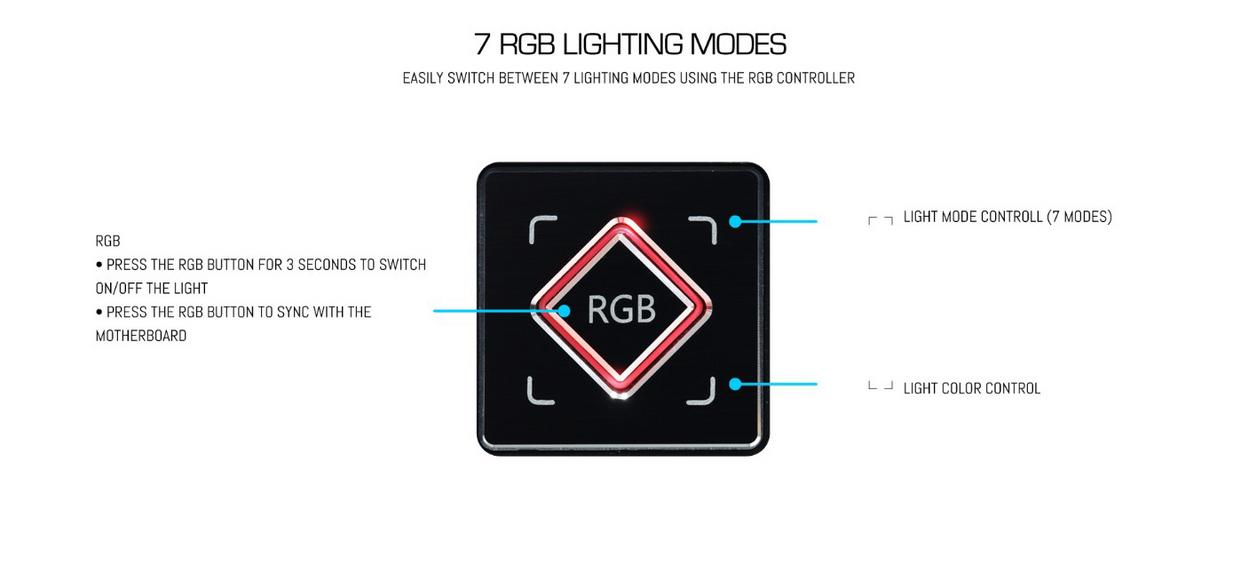

RGB Controller RGB: 1. Press for 3 secs to switch on / off the RGB
2. Press RGB to sync with the motherboard
┌ ┐: Light mode control (7 modes)
└ ┘: Light color control
Power Glass POWER
Controller Reset G: Glass Control (On: Transparent; Off: Opaque)
Reset
Desk Height ▲: Ascend
Control Buttons ▼: Descend
① ② ③ ④ Ⓜ : 4 free settings allow users to customize
and set their preferred sitting/standing
heights; press ⓜ to memorize the setting.
Radiator Support Front: 480mm / 420mm x 2
Middle: 360mm x 2
Rear middle: 240mm x 1
Fan support Front: 140mm x 6 or 120mm x 8
Middle: 120mm x 6
Rear left: 140mm / 120mm x 1
Rear middle: 140mm / 120mm x 2
Rear right: 140mm / 120mm x 1
Removable 2 X 480mm /420mm
Fan / Rad Bracket 2 X 360mm
LEDs Strip 4 (LEDs: 66)
