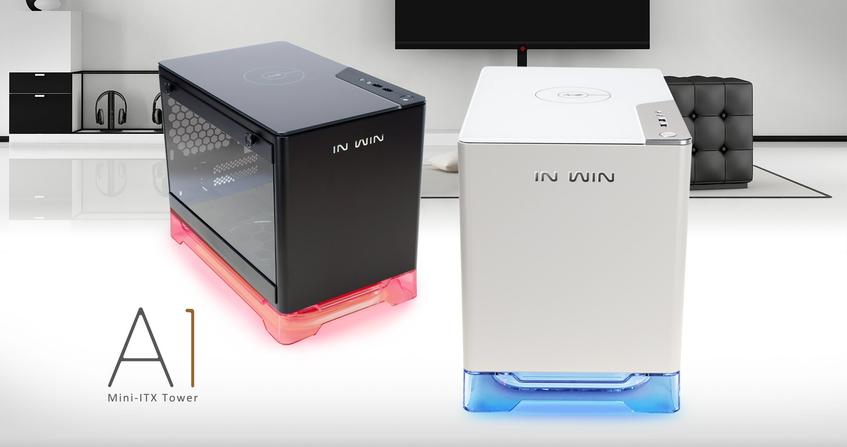

Model : A1
Part Number : A1Black / IW-A1-BLA-P
A1White / IW-A1-WHI-P
Color : Black, White
Case Type : Mini Tower
Case Material : SECC, Tempered Glass
M/B Compatibility : Mini-ITX
Expansion Slots : PCI-E x 2
Maximum Compatibility : VGA Card Length:300mm

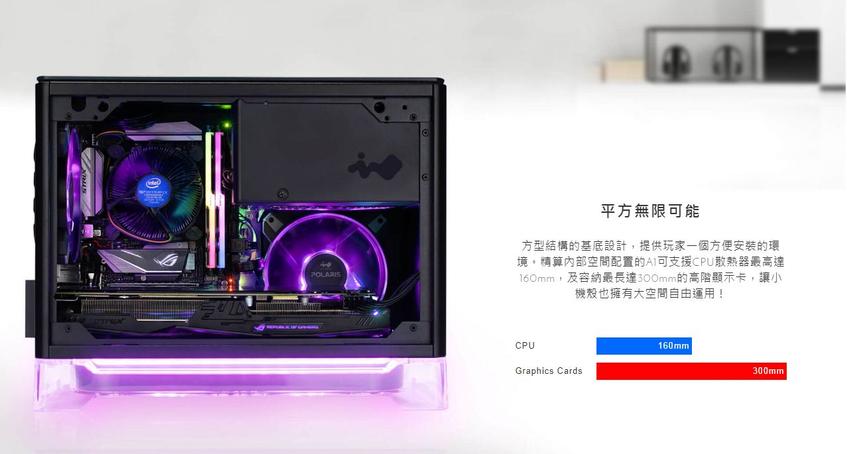

CPU Heatsink Height :160mm
Front Ports : 2 x USB 3.0
HD Audio
Internal Drive Bays : 2 x 2.5"
Thermal Solution Compatibility : 1 x 120mm Side Fan
1 x 120mm Rear Fan / 120mm Radiator
2 x 120mm Bottom Fan

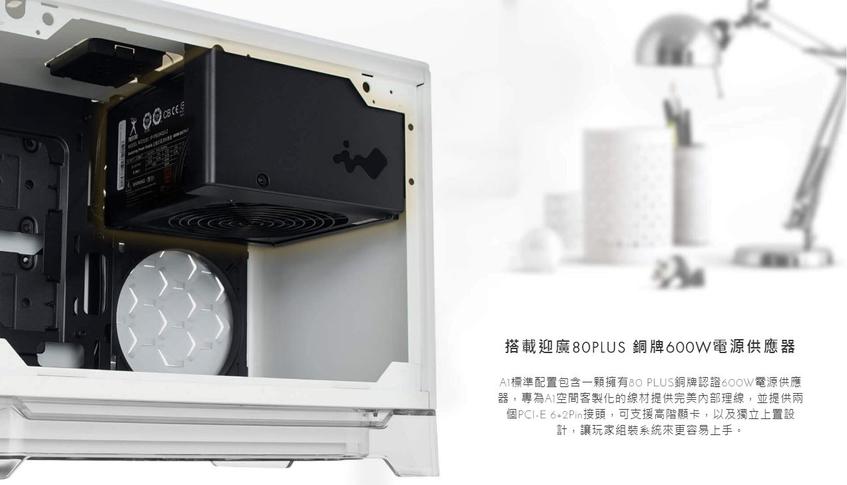

Power Supply Compatibility : In Win 600W PSU Included
Product Dimension(H x W x D) with screw & handle height :
273 x 216 x 355.5mm
(10.7" x 8.2" x 14")
Product Dimension(H x W x D) : 273 x 210 x 355.5mm
(10.7" x 8.2" x 14")
Package Dimension(H x W x D) : 344 x 295 x 414 mm
(13.5" x 11.6" x 16.2")
Net Weight : 6 kg/ 13.2lbs
Gross Weight : 6.9 kg/ 15.3lbs
* In Win products comply with RoHS regulation.
* Specifications may vary based on different regions.
