SPECIFICATIONS
Model : 915
Part Number : IW-915-Black / IW-915-Silver
Color : Black / Silver
Case Type : Full Tower
Material : Aluminium, Tempered Glass, ABS, SECC
M/B Compatibility : 12" x 13.5" E-ATX, ATX, Micro-ATX, Mini-ITX
Expansion Slots : PCI-E x 8
Vertical PCI-E x 2
(Riser Card Optional, Not Included in Package)
Maximum Compatibility : VGA Card Length : 410mm (Maximum)
VGA Card Width: 168mm (Maximum)
Vertical Display VGA Card Height: 50mm (Maximum)
CPU Heatsink Height : 164mm

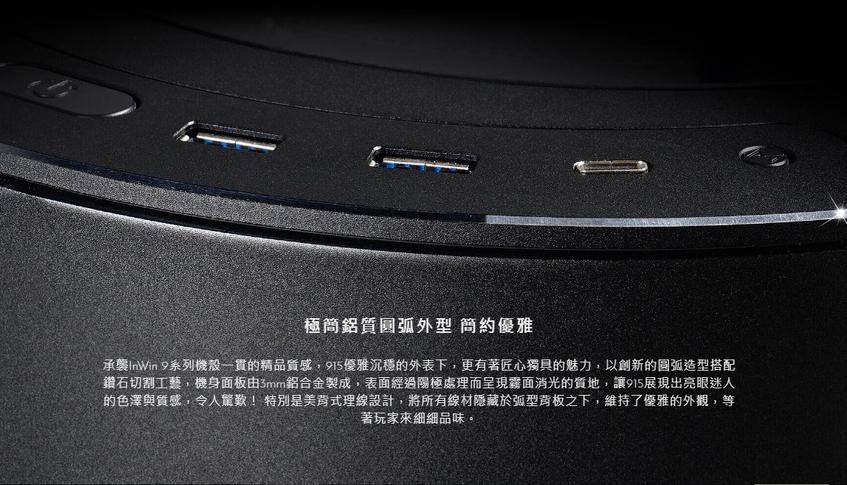

Front Ports : 1 x USB 3.1 Gen 2 Type-C
2 x USB 3.0
HD Audio

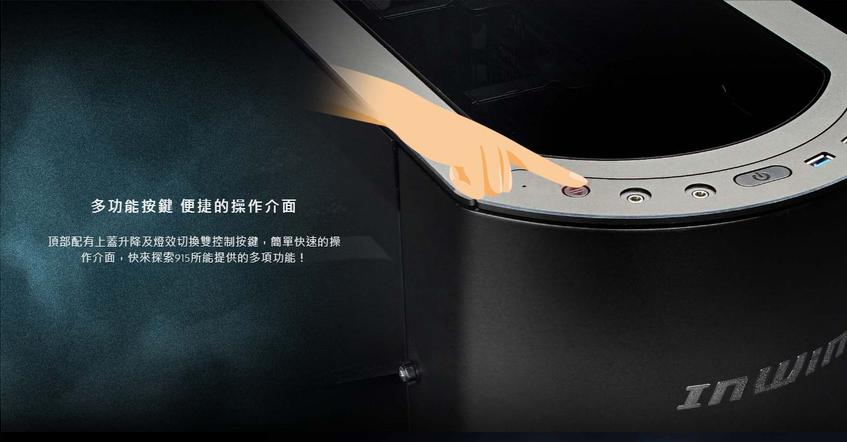

Top Cover Ventilation & LED Lighting Control Switch
Internal Drive Bays : 4 x 2.5"/3.5"
(Bottom Drive Bay Trays)
5 x 2.5"
(4 Brackets and 1 Mounting Area on Motherboard Tray)
4 x 2.5"
(Multifunctional Fan Bracket Mounts)
Max Drive Support:
13 x 2.5” Drives or 4 x 3.5” Drives and 9 x 2.5” Drives
Thermal Solution Compatibility : 3 x 120/140mm Front Fans / 280/360mm Radiator
(280mm Radiator Height up to 53mm,
360mm Radiator Height up to 56mm)
1 x 120mm Rear Fan / 120mm Radiator
3 x 120/140mm Top Fans / 280/360mm Radiator
(Height up to 70mm)
2 x 120/140mm Bottom Fans / 240/280mm Radiator
Power Supply Compatibility : PSII: ATX12V
- 250mm Mounting Area
(Length up to 320mm when Two HDD Cages
Removed)
Product Dimension(H x W x D) with screw & handle height :
570 x 230 x 645 mm
22.44" x 9.06" x 25.4"
Product Dimension(H x W x D) : 595 x 230 x 645 mm
23.43" x 9.06" x 25.4
Package Dimension(H x W x D) : 740mm x 392mm x 792mm
29.14" x 15.44" x 31.18"
Net Weight : 16.4kg / 36.2lb
Gross Weight : 19.8kg / 43.7lb
Our products comply with RoHS regulation.
Specifications may vary based on different regions.
Extra fee for optional parts.
InWin places much effort on protecting and preserving consumer sovereignty. This product is insured with AIG product liability insurance for $2 million USD.
