TECHNOLOGY CO. LTD.
SPECIFICATIONS
Model : 301
Color : Black, White
Case Type : Mid Tower

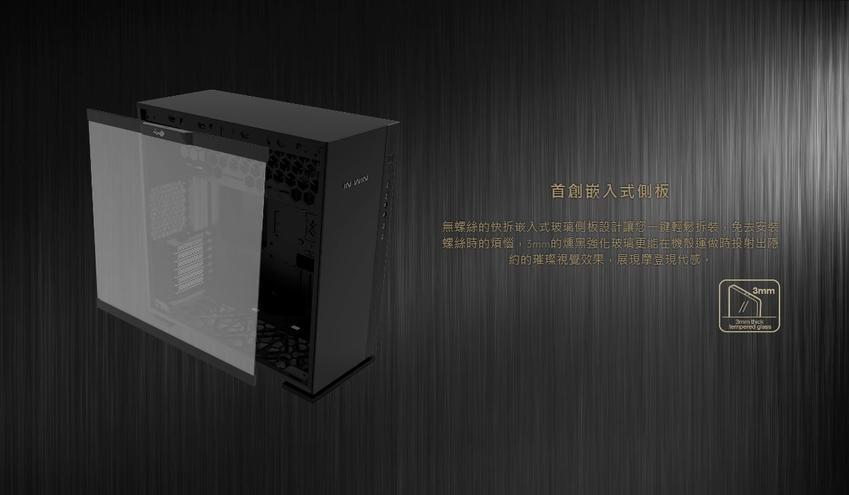

Material : Tempered Glass, SECC
M/B Compatibility : 12" x 10.7" ATX, Micro-ATX, Mini-ITX
Expansion Slots : PCI-E x 7

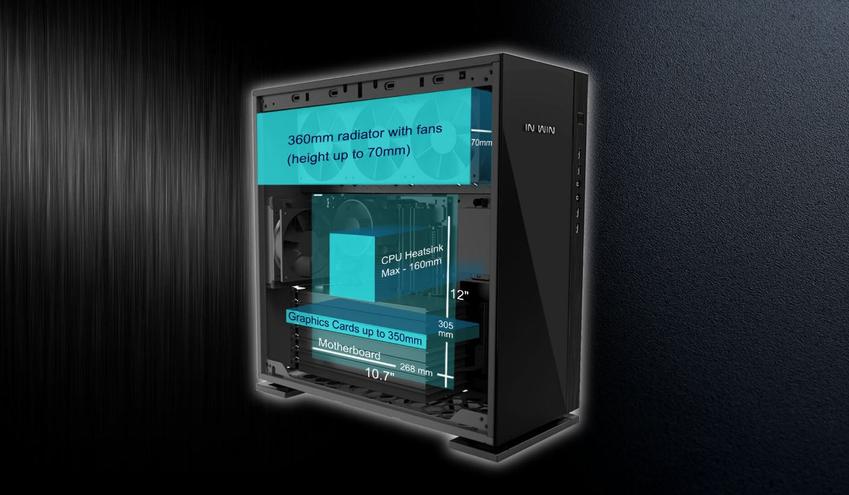

Maximum Compatibility : VGA Card Length:350mm
CPU Heatsink Height :160mm
Front Ports : 2 x USB 3.0
2 x USB 2.0
HD Audio
Internal Drive Bays : 2 x 3.5"
2 x 2.5" 2 Pre-installed (Max. up to 3 bays)

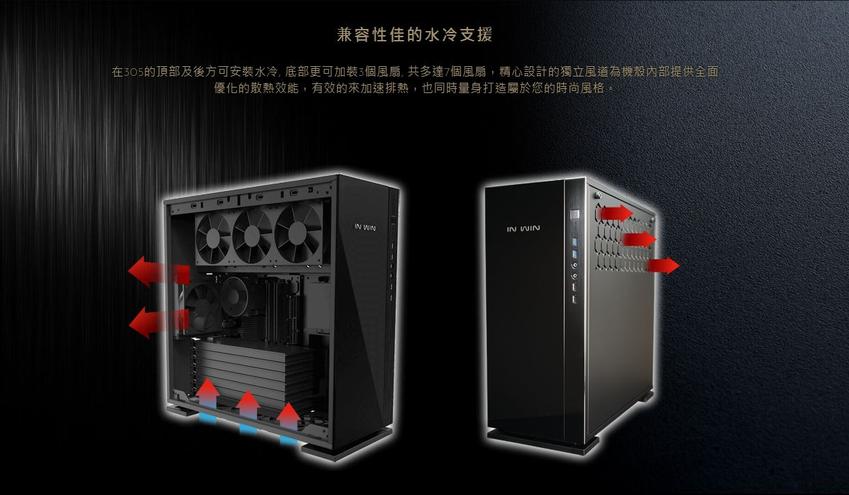

Thermal Solution Compatibility : 1 x 120mm Front Fan / 120mm Radiator
3 x 120mm Rear Fan / 360mm Radiator
3 x 120mm Bottom Fan
Power Supply Compatibility : PSII: ATX12V
- Length up to 200mm
Product Dimension(H x W x D) : 500mm x 248mm x 484mm
19.6" x 9.7" x 19
500mm x 248mm x 485mm
19.6" x 9.7" x 19"
Package Dimension(H x W x D) : 335mm x 610mm x 572mm
13.1" x 24" x 22.5"
Net Weight : 11.53kg / 25lb
Gross Weight : 13.42kg / 29lb
* In Win products comply with RoHS regulation.
* Specifications may vary based on different regions.
* Pre-installed glass panel. Extra fee for closed panel.
