InWin>Case>301C
SPECIFICATIONS
Model : 301C
Color : Black, White
Case Type : Mini Tower

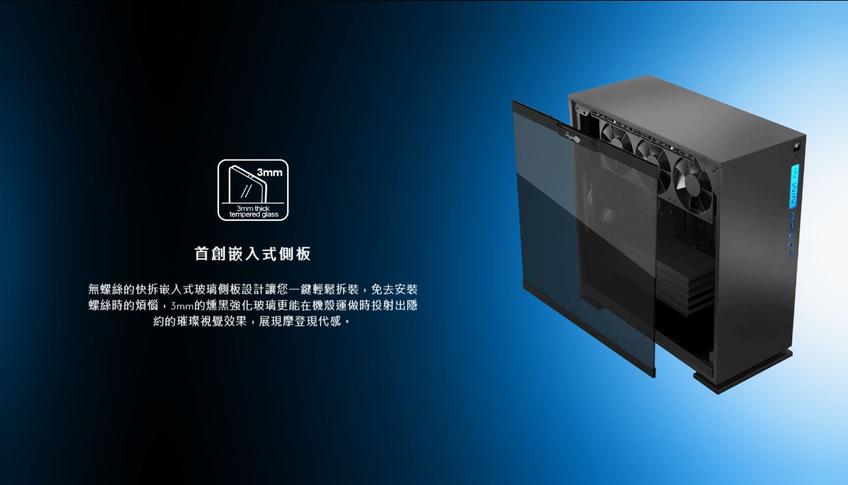

Material : Tempered Glass, SECC
M/B Compatibility : Micro-ATX, Mini-ITX
Expansion Slots : PCI-E x 4

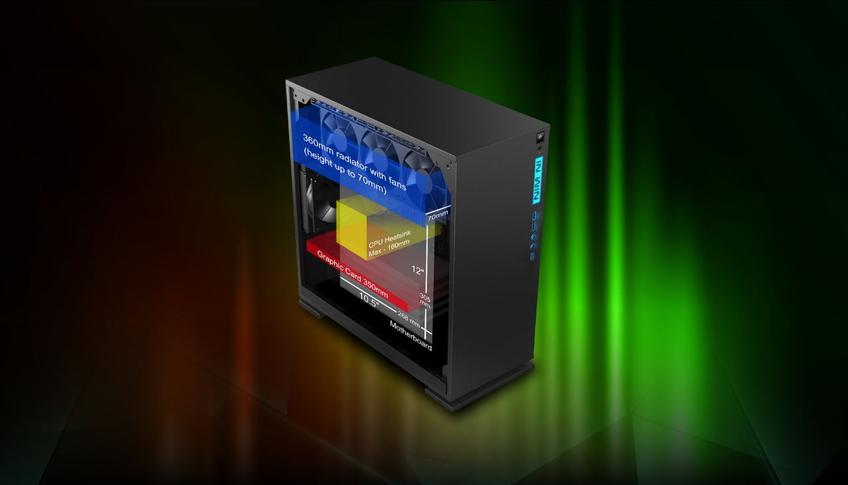

Maximum Compatibility : VGA Card Length: 330mm (Height: 162mm)
VGA Card Length (With Front Fan + Radiator 35mm):
265mm
CPU Heatsink Height: 160 mm
Front Ports : USB 3.1 Gen 2 Type-C
2 x USB 3.0
HD Audio
Internal Drive Bays : 1 x 3.5"/ 2.5"
2 x 2.5"

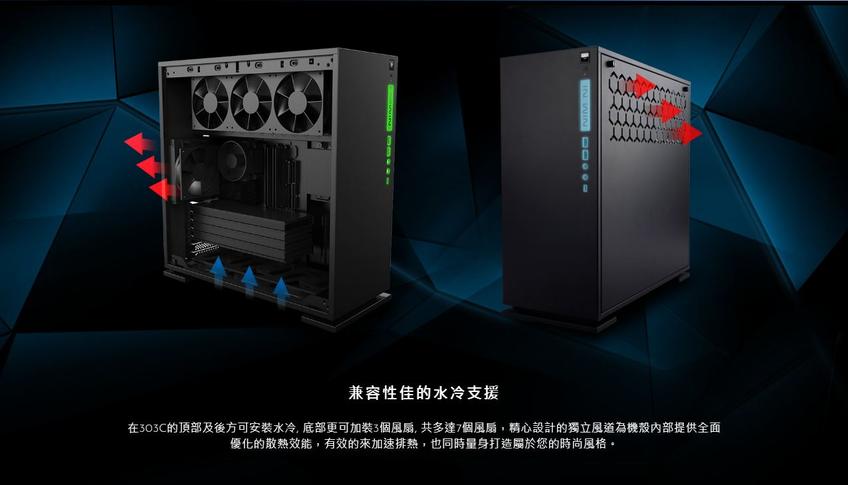

Thermal Solution Compatibility : 2 x 120mm Front Fan / 240mm Radiator
1 x 120mm Rear Fan / 120mm Radiator
2 x 120mm Bottom Fan (Occupy a PCI-E slot）

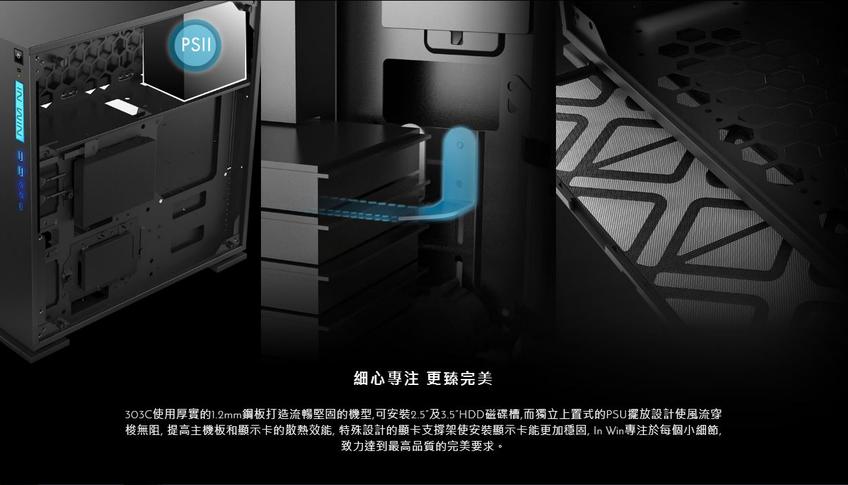

Power Supply Compatibility : PSII: ATX12V
- Length up to 160mm
Product Dimension(H x W x D) : 365mm x 188mm x 370mm
14.3"x 7.4” x 14.6"
Product Dimension(H x W x D) with screw & handle height :
365mm x 208mm x 370mm
14.3” x 8.1" x 14.6"
Package Dimension(H x W x D) : 450mm x 272mm x 458mm
17.7"x 10.7"x 18"
Net Weight : 6.50KG / 14.3lb
Gross Weight : 7.59KG / 16.7lb
* In Win products comply with RoHS regulation.
* Specifications may vary based on different regions.
* Pre-installed glass panel. Extra fee for closed panel.
