SPECIFICATIONS

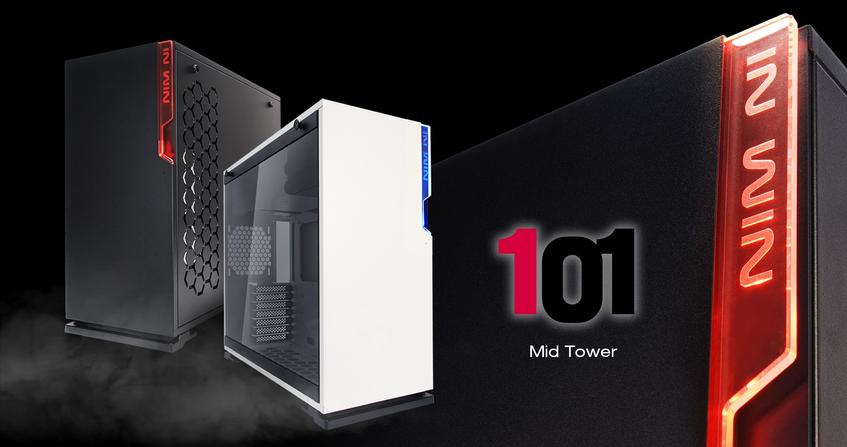

Model : 101
Color : Black, White
Case Type : Mid Tower
Material : SECC, ABS, PC, Tempered Glass
M/B Compatibility : 12" x 10.5“ ATX, Micro-ATX, Mini-ITX
Expansion Slots : PCI-E x 7

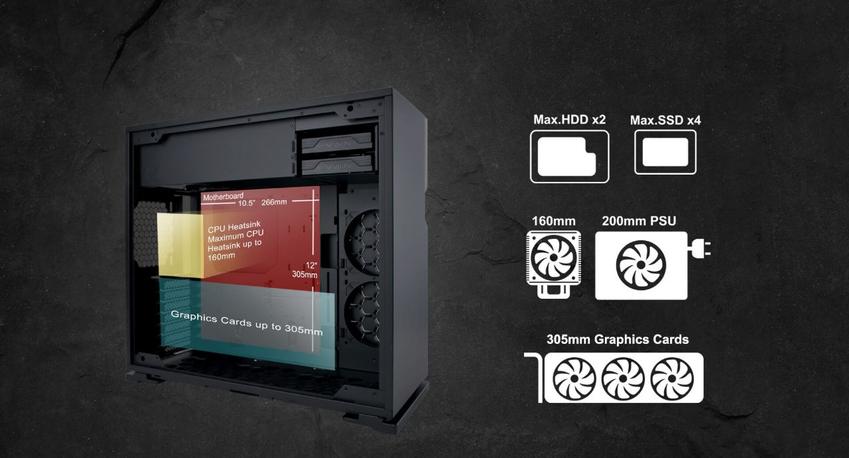

Maximum Compatibility : VGA Card Length : 421mm (Maximum)
VGA Card Length : 305mm (With Side Radiator)
CPU Heatsink Height : 160mm
Front Ports : 2 x USB 3.0 HD Audio
Internal Drive Bays : 2 x 3.5"
2 x 2.5"
(or 4 x 2.5 ")

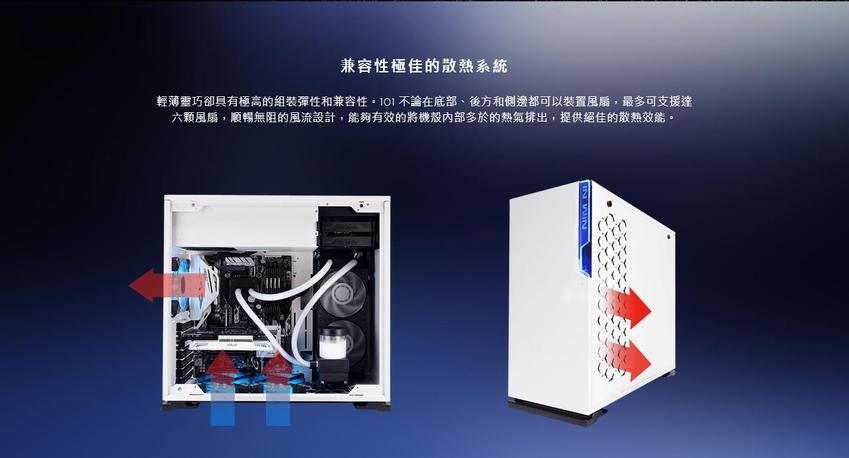

Thermal Solution Compatibility : 1 x 120mm Rear Fan / 120 mm Radiator
2 x 120mm Side Fan / 240mm Radiator
3 x 120mm Bottom Fan / 360mm Radiator
Power Supply Compatibility : PSII : ATX12V
- Length up to 200mm
Product Dimension(H x W x D) : 445 x 220 x 480 mm (17.5" x 8.7" x 18.9")
Product Dimension(H x W x D) with screw & handle height :
445 x 226 x 480 mm (17.5" x 8.7" x 18.9")
Package Dimension(H x W x D) : 532 x 282 x 506mm (20.9" x 11.1" x 19.9")
Net Weight : 7.35kg / 16.2lb
Gross Weight : 8.65kg / 19.1lb
* Our products comply with RoHS regulation
* Specifications may vary based on different regions
